Brief: FITTING FUSION WELDING MACHINE SHG 315 FITTING FUSION WELDING MACHINE SHG 450 630 800 weilding machine SHD 160 250 315 weilding machine SHD 450 630 weilding machine SHD 800 1200 1600

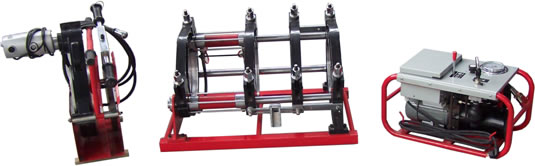

BUTT FUSION WELDING MACHINE SHD 160 250 315




Application and Features

Suitable for butt welding of plastic pipes and / or fittings made of PE, PP, and PVDF in a ditch in worksite or workshop

Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts

Removable PTFE coated heating plate with high accurate temperature control system

Electrical planing tool

Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.

Low starting pressure ensures reliable welding quality of small pipes

Changeable welding position enables to weld various fittings more easily.

Separate two-channel timer records time in soaking and cooling phases.

High-accurate and shockproof pressure meter indicates clearer readings.

Optional parts

Stub end device for short flange stub

Data logger.

Model

SHD160

SHD250

SHD315

Pipe Size(mm)

637590110
125140160

90110125140160
180200225250

160180200225
250280315

Heating Plate Max. Temp.

270

270

270

Temp. deviation in surface (170~250)

±7

±7

±7

Pressure adjustable Ranges

06.3MPa

06.3MPa

06.3MPa

Working Voltage

220V50Hz

220V50Hz

220V50Hz

Heating plate power

1.0 KW

2.1KW

3.1KW

Planing tool r Power

0.7 KW

1.1KW

1.1 KW

Hydraulic unit power

0.75 KW

0.75 KW

0.75 KW

Total power

2.45 KW

3.95 KW

4.95 KW

Weight

106Kg

143Kg

216Kg

Packing Dimension

Basic frame

980×580×550

980×580×550

1120×710×720

Support

590×550×720

590×550×720

780×630×750

Hydraulic Unit

740×490×570

740×490×570

740×490×570
