Automatic Hexagonal Mesh Machine

Quick Detail:

1. Wire diameter:1.6-4.0mm
2. Speed:225m/h.
3. Mesh width:3300mm (also can be 2300mm or 4300mm)
4. Power: 15kw

Description:

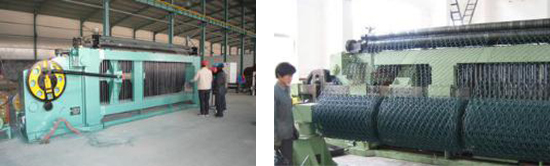

New type LNWL-2 Double Twist Gabion Box Machine.
This kind of machine use the seamless steel tube to increase inside diameter, so you can put more spring wire at the same time.
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can manufacture gabion machine according to customer request.
Now all of our machine have been changed to seamless steel tube, it can increase inside diameter to put more spring wire and also can reduce the weight of machine, make machine working more fast.
And this new machine is very popular on market, we have sell more than 80 sets of machine to our China mainland, also sell to oversea such as Malaysia, Albania.

Detail Specification For LNWL-2 Gabion Machine:

Style
Mesh size(mm)
Width(mm)
Wire diameter(mm)
Spindle speed(r/min)
power of motor(kw)
Theoretic output(m/h)
LNWL23-60-2
60X80
2300
1.6-2.8
25
11
165
LNWL23-80-2
80X100
2300
1.6-3
25
11
195
LNWL23-100-2
100X120
2300
1.6-3.2
25
11
225
LNWL23-120-2
120X150
2300
1.6-3.5
25
11
225
LNWL33-60-2
60X80
2300
1.6-2.8
25
15
165
LNWL33-80-2
80X100
2300
1.6-3
25
15
195
LNWL33-100-2
100X120
2300
1.6-3.2
25
15
225
LNWL33-120-2
120X150
2300
1.6-3.5
25
15
225
LNWL43-60-2
60X80
2300
1.6-2.8
25
22
165
LNWL43-80-2
80X100
2300
1.6-3
25
22
225
LNWL43-100-2
100X120
2300
1.6-3.2
25
22
225
LNWL43-120-2
120X150
2300
1.6-3.5
25
22
225
