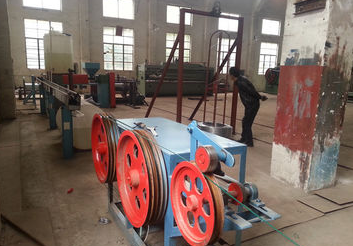

Gabion Mesh PVC Coating Machine

Quick Detail:

1.Max wire diameter can be 5.0mm
2.Easy control
3.Non rust properties
4.Dimensional accuracy
5.Robust construction
6.Low maintenance

Specifications:

, The coating machine is mainly used for various requirements of the wire's plastic bag.
, Coated thickness can be controlled at 0.4mm, and the speedisquick,goodfor mobility,output stable.
, Power of direct-current motor: 4kW
, Exterior size of main machine: 2500x60x1600mm
, Weight: about 1300kg
, Exterior size of wire drawing frame: 3800x900x1200mm
, Weight: about 1200kg
, Exterior size of wire winding machine: 2000x1400x1100mm
, Weight: about 600kg
, Exterior size of payoff reel: 1900x450x1000mm
