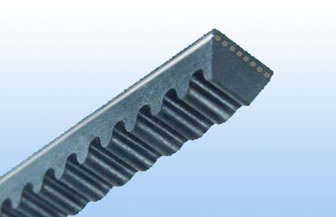

Wedge raw edge cogged V-belts

¡î Features: Wedge raw edge cogged V-belts feature large friction coefficient, small friction loss, high transmission efficiency, long service life, etc. They can absorb transmission vibration noises and the fatigue endurance reaches over 10 8 times.

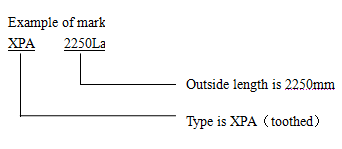

¡î Marking: Wedge raw edge cogged V-belts fall into two categories: the metric SP series and the inch V series. The metric SP series comprise of XPZ, XPA, XPB and XPC models. The inch V series include 3VX and 5VX models. V-belts of these types are marked according to the outside length of factory V-belts. Specific noting should be made on the order list if the customer has special requirements. The length conversion table is avaliable for conversion between various models.

Specification and technical data of Wedge raw edge cogged V-belts:

Production Type

Top Width

Pitch Width

Height

Angle

Length Conversion

Length Rang £¨ inch £©

Length Range £¨ mm £©

Mark

3VX £¨ 9N £©

9.5

/

8.0

40 ¡ã

La=Li+50

20 ¡å -200 ¡å

508-5080

La

5VX £¨ 15N £©

16.0

/

13.5

40 ¡ã

La=Li+85

30 ¡å -200 ¡å

762-5080

La

XPZ

10.0

8.0

8.0

40 ¡ã

La=Li+50

20 ¡å -200 ¡å

508-5080

La

XPA

13.0

11.0

10.0

40 ¡ã

La=Li+63

20 ¡å -200 ¡å

508-5080

La

XPB

17.0

14.0

14.0

40 ¡ã

La=Li+88

30 ¡å -200 ¡å

762-5080

La

XPC

22.0

19.0

18.0

40 ¡ã

La=Li+113

30 ¡å -200 ¡å

762-5080

La

Note £º X means toothed. REP stands for one ply fabric and REL stands for three plies fabric.
