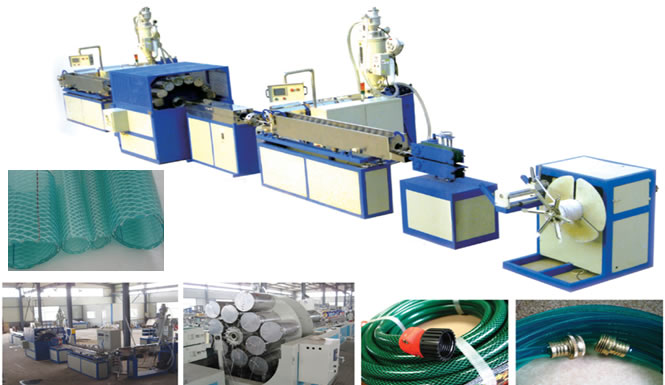

PVC fiber reinforced hose extrusion line

Function and application:

This line is composed by two single screw extruders,mold,cooling bath,drawing machine,braider,winder.PVC fiber reinforce pipe is widely used in garden irrigation,chemical industry,sivil use(Solar water heater and gas etc).

Process flow:

Extruder(For inner layer) ”ścooling bath ”śbraider ”śextruder(For outer layer) ”ścooling bath ”śdrawing machine ”świnder.

Technical parameters

Model

CHSJ45/30

CHSJ65/28

Pipe diameter range(mm)

¦µ6-16

¦µ6-14

Max screw diameter(mm)

¦µ45

¦µ65

Screw length proportion(L/D)

30:1

28:1

Screw rotate speed

600

500

Motor power(kw)

11

18.5

Braider motor power(kw)

2.2

3

Output(kg/h)

40-60

60-120

””””””””””””””””””””””””””””””””””””””
