Heat Resistant Conveyor Belts

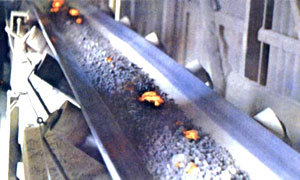

Product application: The product is suitable for being used in conveying materials at high temperature in industries of metallurgy, coking, cement, refractory, founding and coating.

Product characteristics: It is characterized by high heat-resistant and wear-resiatant, also it has good performance under designed temperature, it has long life span.

Type: 1,2,3,4

Specification and technical data of EP conveyor belts:

Type

Belt Surface Temperature

Application

1

50 ~ 10 0

Suitable for the condition that requires heat resiatant, but the materials'temperature is not so high.

2

125

Suitable for the condition that requires abrasion resistant, the matericals' temperature is proper, or for powdery materials with a not too high temperature.

3

150

Suitable for the condition that requires high temperature resistant and high abrasion resistant.

4

150 ~ 200

Suitable for the condition that requires high temperature resistant and high abrasion resistant.

Ep heat resistant conveyor belt take EP-200 as an example

Type

EP-200 heat resistant

Longitudinal full thickness tensile strength (KN/m)

3 plies

600

4 plies

800

5 plies

1000

6 plies

1200

7 plies

1400

8 plies

1600

Longitudinal elongation

1.5%

Rubber tensile strength Mpa

14

Rubber tensile strength abrasion Mpa

0.5

Fabric adhesion(N/mm)

12
