CONTROL CABLES

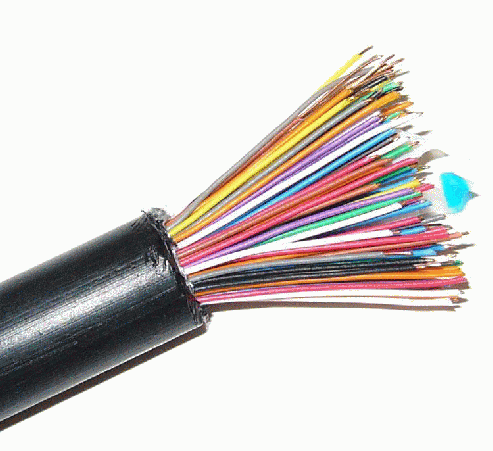

PLASTIC INSULATED CONTROL CABLE

Application:
For system connection wire of control,single,protection or measuring with rated voltage up to and including 450/750v.

Operating characteristics

Rated voltage Uo/U: 450/750v.

Permissible Max.continuous operation temperature of conductor:

PVC insulated: 70 ; XLPE insulated: 90 .

Upon short circuit(Max.Duration time 5s) the Max.temperature of conductor not higher than:

XLPE insulated: 250 ; PVC insulated: 160 .

Ambient temperature of installation not less than 0 .

Prefered permissible bending radium:

For non-armoured cable,not less than 6 times of cable diameter;

For armoured or copper-tape-screened cable, not less than 12 times of cable diameter;

For screened flexible cable,not less than 6 times of cable diameter.

Types:

Type

Name

Application

KVV/KYJV

Copper conductor,PV/XLPE insulated PVC sheathed control cable

For fixed-laying indoors,in cable duct or conduit

KVVP/KYJVP

Copper conductor,PV/XLPE insulated PVC sheathed braid screened control cable

For fixed-laying indoors,in cable duct or conduit upon screen requirment

KVVP2/KYJVP2

Copper conductor,PV/XLPE insulated PVC sheathed copper tape screened control cable

For fixed-laying indoors,in cable duct or conduit upon screen requirment

KVV22/KYJV22

Copper conductor,PV/XLPE insulated PVC sheathed steel laoe amored control cable

For fixed-laying indoors,in cable duct or direct-buried,able to bear large mecfianical forces

KVV32/KYJV32

Copper conductor,PV/XLPE insulated PVC sheathed fine steel wire amored control cable

For fixed-laying indoors,in cable duct or direct-buried,able to bear large mecfianical forces

KVVR/KYJVR

Copper conductor,PV/XLPE insulated PVC sheathed control fiexibled cable

For laying indoors upon moveable requirment

KVVRP/KYJVRP

Copper conductor,PV/XLPE insulated PVC sheathed braid screened control fiexibled cable

For laying indoors upon moveable and screen requirment
