1. Tirana 220kv/110KV/35kv substation restructure Project

1.1 The introduction of construction
The project is built to reinforce the 220 KV Tirana substations, Albania . The substation has three sets of autotransformers and will reinforce another one through this project.
1.2 The description and value of main autotransformer
Type of autotransformer:
　 Capacity: 120/120/60 MVA
　 Voltage: 220 + 8x1.25% /115/37.5 + 2x2.5% KV
　 Method of connection: Y0-o/ Δ
The continual working current:
　 220 KV side: Ig 1 =0.331 KA
　 110 KV side: Ig 2 =0.662 KA
　 35 KV side: Ig 3 =0.971 KA

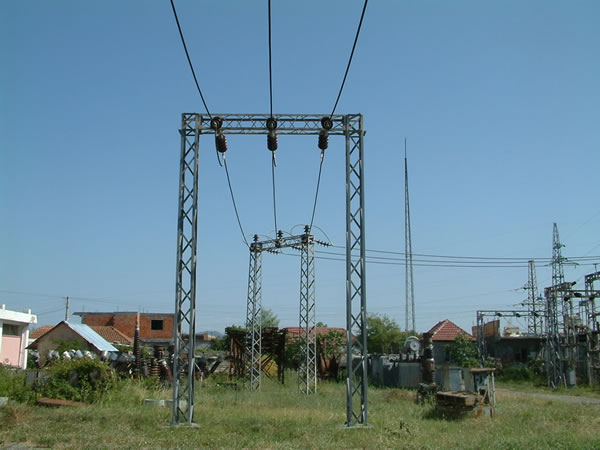

35 KV bay

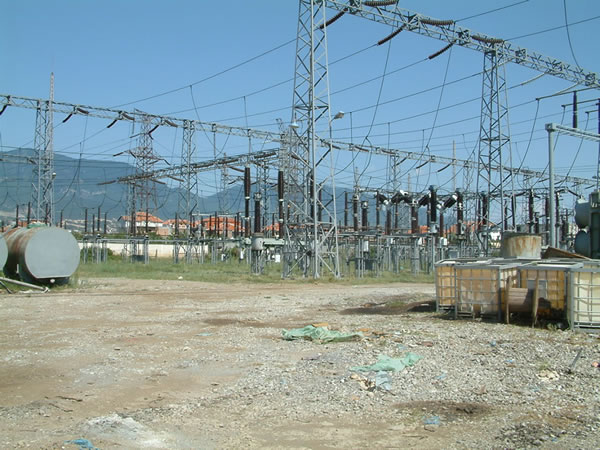

At and 220KV site

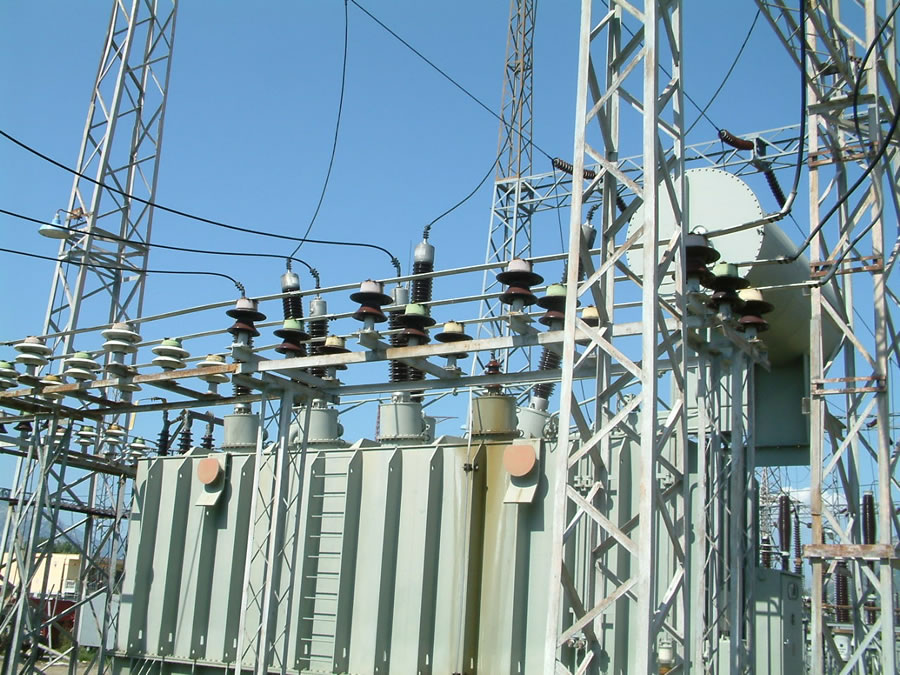

35 KV busbars old

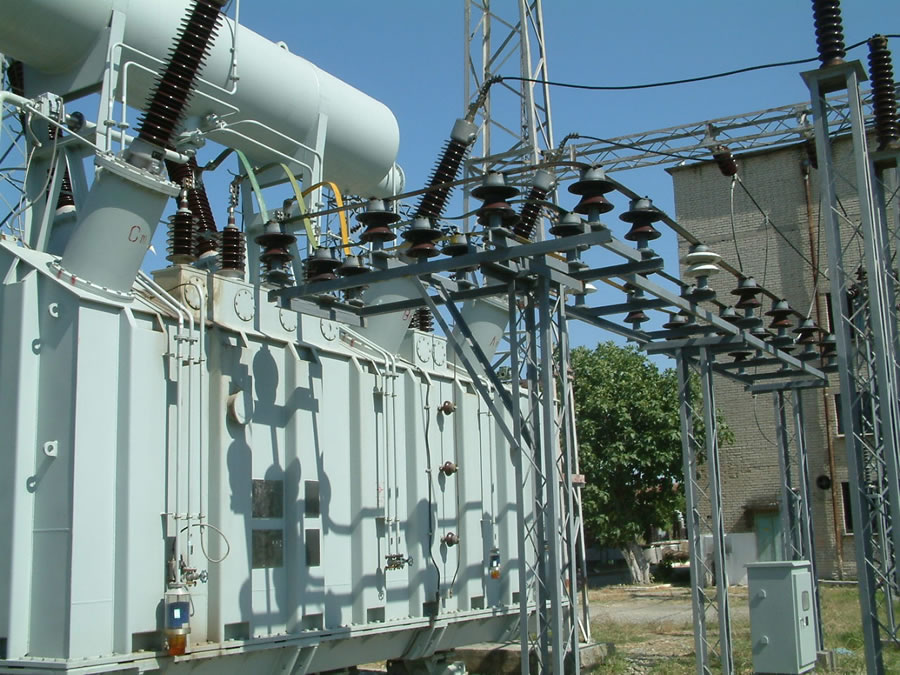

35 KV side old

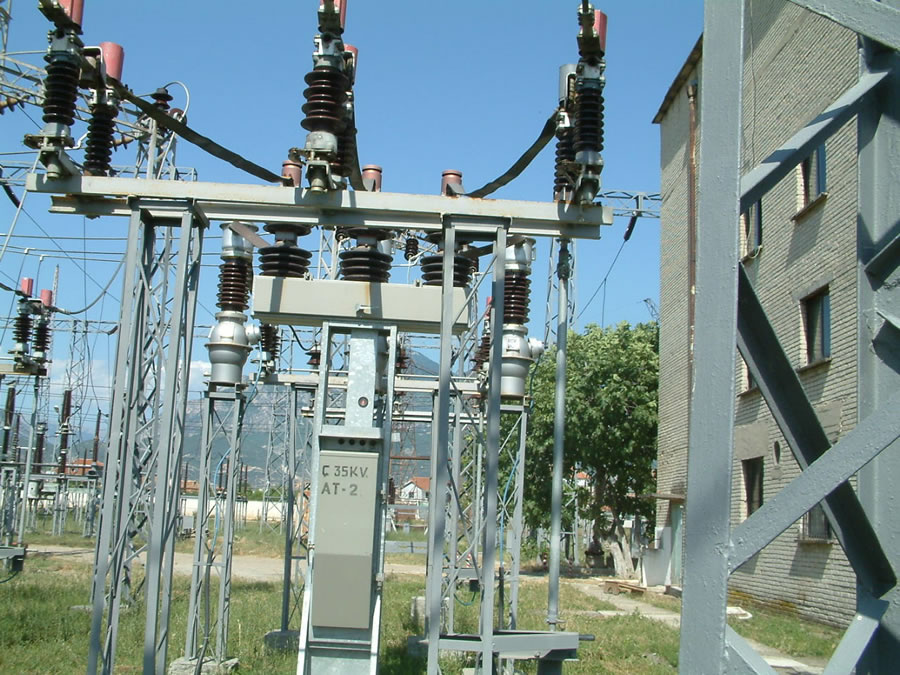

35 KV construction

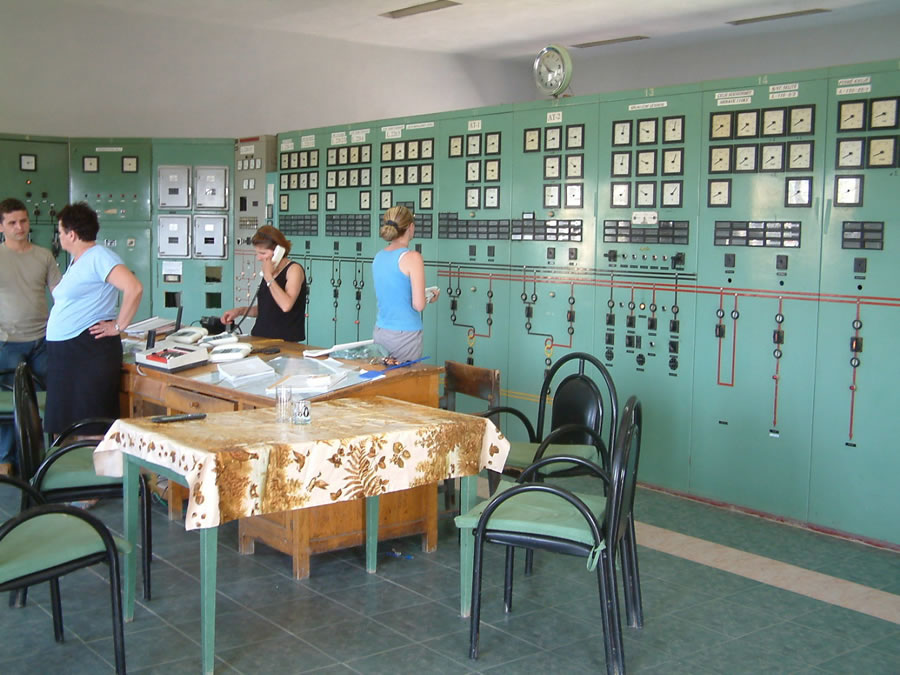

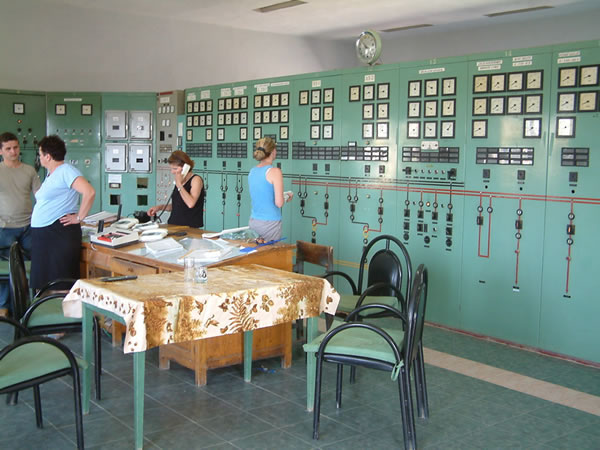

Control room

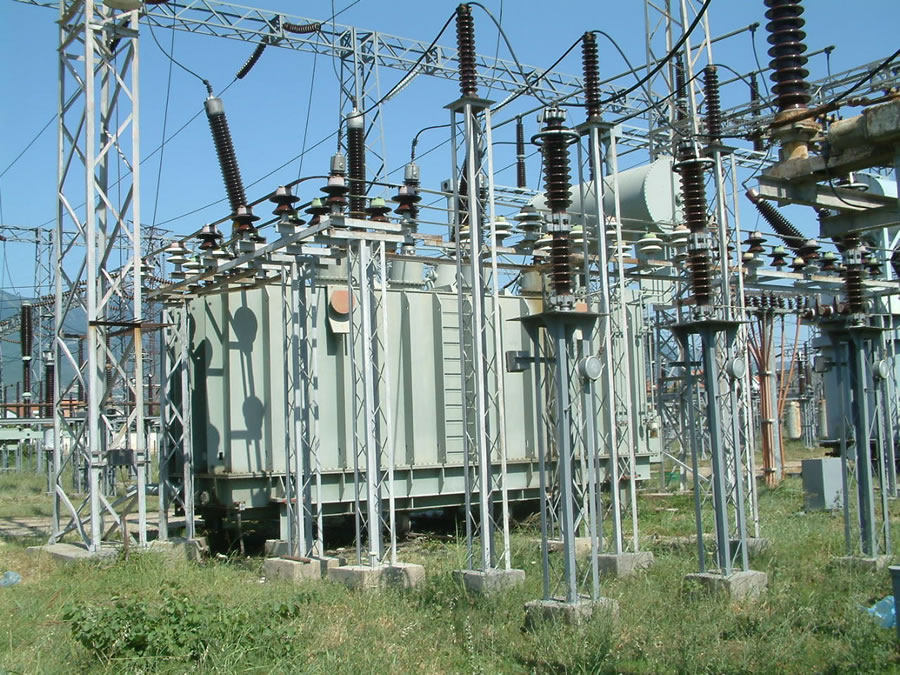

Koncar AT

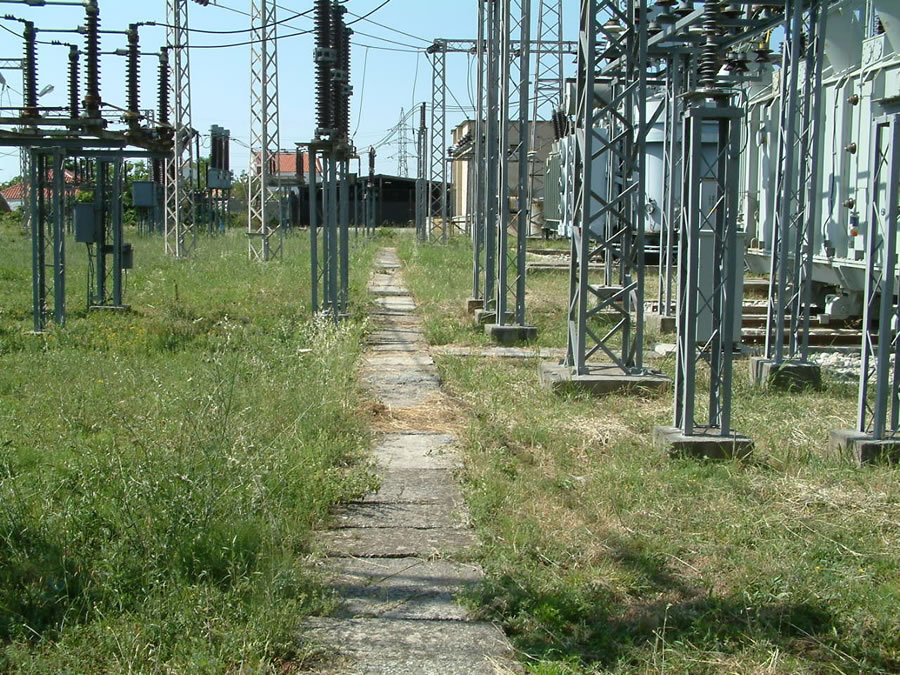

cable canal

2. Other Project Display

　　　
500KV 变电站电器设备安装　　　　　　　　　　　　　　　　　 500KV 线路工程附件装

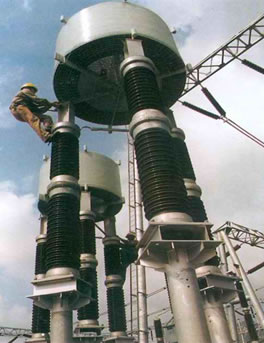

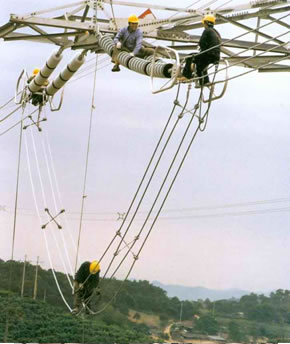

Electrical equipment installation for　　　　　　　　　　　Accessories installation
a 500KV substation 　　　　　　　　　　　　　　　　　　for A 500KV transmission project

　　

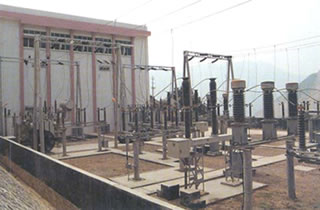

110KV 变电站 　　　　　　　　　　　　　　　　　　　　　　　220KV 输变电线路铁搭

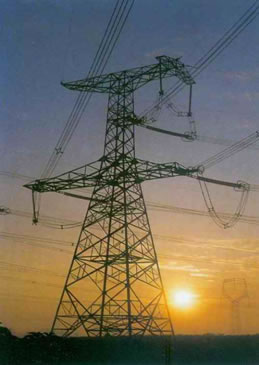

110KV Substation　　　　　　　　　　　　　　　　　　　　　An iron tower of 500KV Power
