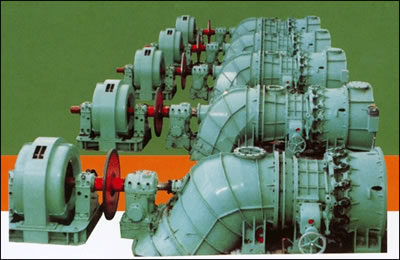

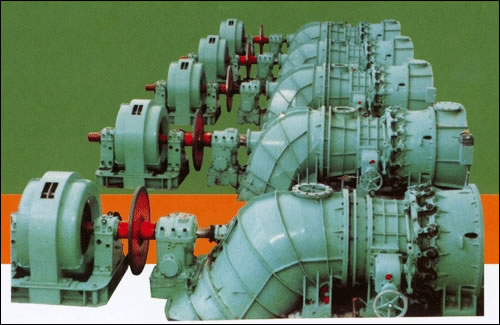

Tubular Water turbine generating unit

Tubular unit

[ catalogue ]

【 Specifications 】 The diameter of the runner: 1.2m- 4.5m;
　　　　　　　　　　　Suitable water head: H =2m- 30m;
　　　　　　　　　　　The capacity of the generator unit: 250KW- 8000KW

【 Advantages 】 It is suitable for areas such as plain, hills and coasts in which the water head is low and flow is large
This type has large flow, high-efficient wide area.
Compared with vertical Kaplan type units, it is with high efficiency, the factory building is little in excavating amount, and hydropower station water conservancy project investment can save 10%- 20%, equipment investment saves 5%- 10%.
