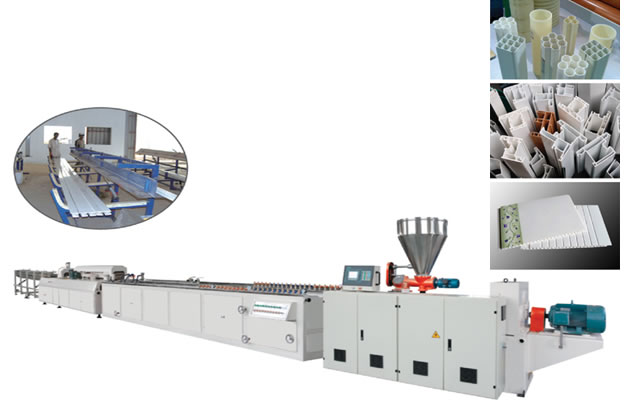

PVC frofile&foamed extrusion line
Function and application:
PVC frofile&foamed extrusion line is designed for extrusion of PVC plastic door's and window's profile and cross-section cable pipe,aluminum-plastic composite profiles etc.PVC profiles are widely used in the building industry,home and office decoration.
Technical parameters
Type |
CHYF-180 |
CHYF-240 |
CHYF-300 |
CHYF-500 |
Max width(mm) |
180 |
240 |
300 |
500 |
Degree of vacuum(MPa) |
-0.08 กซ -0.9 |
-0.08 กซ -0.9 |
-0.08 กซ -0.9 |
-0.08 กซ -0.9 |
Drew speed(m/min) |
0.5 กซ 4.0 |
0.5 กซ 4.0 |
0.3 กซ 3.0 |
0.3 กซ 3.0 |
Total power(kw) |
25 |
33/40 |
40 |
59 |
Cooling water(m3/h) |
5 |
7 |
7 |
10 |
Compressed air(m3/h) |
0.2 |
0.3 |
0.3 |
0.4 |
Length of line(m) |
22 |
25 |
25 |
25.5 |
