Ordinary raw edge cogged V-belts
¡î Features: Ordinary raw edge cogged V-belts feature large friction coefficient, small friction losses, high transmission efficiency, long service life, etc. They can absorb transmission vibration, noises and the fatigue endurance reaches over 10 8 times.

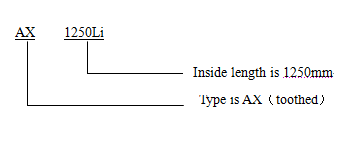

¡î Marking: The marking of ordinary wrapped V-belts show the inside length of factory V-belts. The length conversion table is available for conversion between various models.
Specification and technical data of Ordinary raw edge cogged V-belts:
Production Type |
Top Width |
Pitch Width |
Height |
Angle |
Length Conversion |
Length Rang £¨ inch £© |
Length Range £¨ mm £© |
Mark |
ZX |
10.0 |
8.5 |
6.0 |
40 ¡ã |
Li=Lw-22 |
20 ¡å -100 ¡å |
508-2540 |
Li |
AX |
13.0 |
11.0 |
8.0 |
40 ¡ã |
Li=Lw-30 |
20 ¡å -200 ¡å |
508-5080 |
Li |
BX |
17.0 |
14.0 |
11.0 |
40 ¡ã |
Li=Lw-40 |
20 ¡å -200 ¡å |
508-5080 |
Li |
CX |
22.0 |
19.0 |
14.0 |
40 ¡ã |
Li=Lw-58 |
30 ¡å -200 ¡å |
762-5080 |
Li |
¡¡
