Joint ordinary V-belts

☆ Features: Joint ordinary V-belts are composed of multiple ordinary V-belts which are connected into a whole. They effectively solve peoblems such as wobbling, smacking and turning over occurred in single belt operation while ensuring equal stress of each belt and a large conveying load.

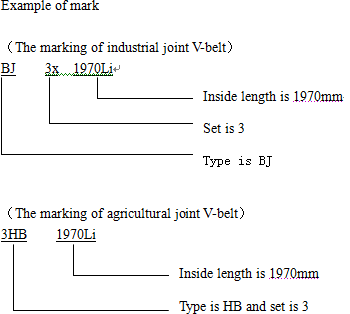

☆ Marking: The marking of joint ordinary V-belts stipulates model type, banding number and length with other mark in sequence. V-belts of these types are marked according to the inside length . The length conversion table is available for conversion between various models.

Specification and technical data of Joint ordinary V-belts:

Production Type

Top Width

Pitch Distance

Height

Angle

Length Conversion

Length Rang ( inch )

Length Range ( mm )

Mark

AJ

13.6

15.6

10.0

40 °

Li=La-63

47 ″ -197 ″

1200-5000

Li

BJ

17.0

19.0

13.0

40 °

Li=La-82

47 ″ -394 ″

1200-10000

Li

CJ

22.4

25.5

16.0

40 °

Li=La-100

71 ″ -394 ″

1800-10000

Li

DJ

32.8

37.0

21.5

40 °

Li=La-135

177 ″ -590 ″

4500-15000

Li
