Joint narrow V-belt

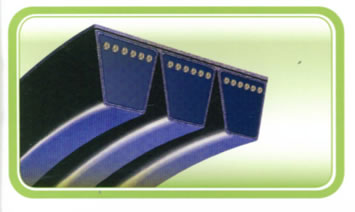

¡î Features: Joint narrow V-belts are composed of multiple narrow V-belts which are connected into a whole. They effectively solve problems such as wobbling, smacking and turning over occurred in single belt operation while ensuring equal stress of each belt and a large conveying load.

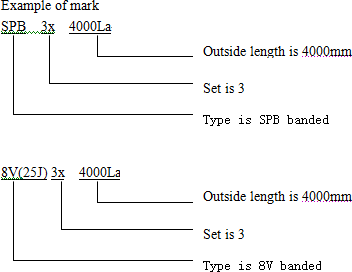

Marking: The marking of joint narrow V-belts stipulates model type, banding number and length with other marks in sequence. V-belts of these types
¡¡
Specification and technical data of Joint narrow V-belts:
Production Type |
Top Width |
Pitch Distance |
Height |
Angle |
Length Conversion |
Length Rang(inch) |
Length Range (mm) |
Mark |
3V(9J) |
9.7 |
10.3 |
9.7 |
40 ¡ã |
La=Li+63 |
47 ¡å -197 ¡å |
1200-5000 |
La |
5V(15J) |
15.7 |
17.5 |
15.7 |
40 ¡ã |
La=Li+98 |
59 ¡å -394 ¡å |
1500-10000 |
La |
8V(25J) |
25.4 |
28.6 |
25.4 |
40 ¡ã |
La=Li+157 |
79 ¡å -394 ¡å |
2000-10000 |
La |
SPZ |
10.5 |
/ |
10 |
40 ¡ã |
La=Li+63 |
47 ¡å -197 ¡å |
1200-5000 |
La |
SPA |
13.6 |
/ |
12.3 |
40 ¡ã |
La=Li+78 |
47 ¡å -197 ¡å |
1200-5000 |
La |
SPB |
17 |
/ |
16.5 |
40 ¡ã |
La=Li+105 |
59 ¡å -394 ¡å |
1500-10000 |
La |
SPC |
22 |
/ |
21 |
40 ¡ã |
La=Li+132 |
118 ¡å -492 ¡å |
3000-12500 |
La |
