ELECTRIC POWER CABLE

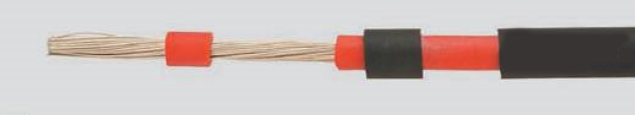

SOLAR CABLE
Application:
The product is suitable for use in Solar photovoltaic power plant,is one of the most important module of generating equipment.
Operation characteristics
Rated voltage AC Uo/U:0.6/1kv or AC:1800v
Operation temperature:long-time operation temperature is not more than 120 ¡æ
Max.short-circuit temperature of conductor shall not exceed 200 ¡æ .(5s Max.Duration)
Environmental temperature: -40¡æ ¡« + 90 ¡æ
¡¡
XLPE INSULATED ELECTRICAL CABLE FOR RATED VOLATAGE 0.6/1KV
Type of cable:
Type |
Discription |
Application |
YJV |
Copper condutor XLPE insulated PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground,not required to bear external mechanical forces.
Single core cable in magnetic duct is not permissible. |
YJLV |
Aluminium conductor XLPE insulated PVC sheathed power cable. |
YJV |
Copper conductor XLPE insulated PE sheathed power cable. |
YJLV |
Aluminium conductor XLPE insulated PE sheathed power cable. |
YJV22 |
Copper conductor XLPE insulated steel tape armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground,required to bear certain longitudinal mechanical force. |
YJLV22 |
Aluminium conductor XLPE insulated steel tape armoured PVC sheathed power cable. |
YJV23 |
Copper conductor XLPE insulated steel tape armoured PE sheathed power cable. |
YJLV23 |
Aluminium conductor XLPE insulated steel tape armoured PE sheathed power cable. |
YJV32 |
Copper conductor XLPE insulated fine steel wire armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground and wells,required to bear external mechanical forces and determinate pulling force. |
YJLV32 |
Aluminium conductor XLPE insulated fine steel wire armoured PVC sheathed power cable. |
YJV33 |
Copper conductor XLPE insulated fine steel wire armoured PE sheathed power cable. |
YJLV33 |
Aluminium conductor XLPE insulated fine steel wire armoured PE sheathed power cable. |
PVC INSULATED ELECTRICAL CABLE FOR RATED VOLATGE 0.6/1KV
Type of cable:
Type |
Discription |
Application |
VV |
Copper condutor PVC insulatedPVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground,not required to bear external mechanical forces.
Single core cable in magnetic duct is not permissible. |
VLV |
Aluminium conductor PVC insulated PVC sheathed power cable. |
VY |
Copper conductor PVC insulated PE sheathed power cable. |
VLY |
Aluminium conductor PVC insulated PE sheathed power cable. |
VV22 |
Copper conductor PVC insulated,steel tape armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels or direct buried,able to bear external mechanical forces,but unable to bear large pulling force. |
VLV22 |
Aluminium conductor PVC insulated steel tape armoured PVC sheathed power cable. |
VV23 |
Copper conductor PVC insulated steel tape armoured PE sheathed power cable. |
VLV23 |
Aluminium conductor PVC insulated steel tape armoured PE sheathed power cable. |
VV32 |
Copper conductor PVC insulated fine steel wire armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels,cable trench,well or direct buried.Able to bear external mechanical forces and determinate pulling force. |
VLV32 |
Aluminium conductor PVC insulated fine steel wire armoured PVC sheathed power cable. |
VV33 |
Copper conductor PVC insulated fine steel wire armoured PE sheathed power cable. |
VLV33 |
Aluminium conductor PVC insulated fine steel wire armoured PE sheathed power cable. |
LOW-FUME AND NO-HALOGEN FLAME-RETARDING POWER CABLE
Application:
The product is suitable for use in power distribution lines with rated power-frequency voltage up to and including 0.6/1kv.
Operation characteristics
• Rated power-frequency voltage Uo/U:0.6/1kv.
• Max.permission continuous operating temperature of conductor: 90¡æ .
• Max.short circuit temperature of the conduct shall not exceed 25¡æ .(5s maximum duration)
• The ambient temperature under installation should not below 0¡æ ,preheating will be needed if the temperature is below 0¡æ .
• The bending radious of cable should not less than 15 timess of the cable diameter.
Tyoe name of cable :
Type |
Name |
WDZA(B,C)-YJE
WLZA(B,C)-YJE |
Cross-linking polyethylene insulated and low-smoke and no-halogen sheathed flame-retardant grade A(B,C) power cable |
WDZA(B,C)-YJE23
WLZA(B,C)-YJE23 |
Cross-linking polyethylene insulated and low-smoke and no-halogen sheathed steel tape armored flame-retardant grade A(B,C) power cable |
WDZA(B,C)-YJE33
WLZA(B,C)-YJE33 |
Cross-linking polyethylene insulated and low-smoke and no-halogen sheathed fine steel wire armored flame-retardant grade A(B,C) power cable |
WDZA(B,C)-YJFE
WLZA(B,C)-YJFE |
Radiant cross-linked polyethylene insulated and low-smoke and no-halogen sheathed flame-retardant grade A(B,C) power cable |
WDZA(B,C)-YJFE23
WLZA(B,C)-YJFE23 |
Radiant cross-linked polyethylene insulated and low-smoke and no-halogen sheathed steel tape flame-retardant grade A(B,C) power cable |
WDZA(B,C)-YJFE33
WLZA(B,C)-YJFE33 |
Radiant cross-linked polyethylene insulated and low-smoke and no-halogen sheathed fine wire tape flame-retardant grade A(B,C) power cable |
Production range og cable
No. of cores:1-5cores
Norminal cross sertion:1 -800mm2
HIGH TEMPERATURE RESISTANT POWER CABLE OF RATED VOLTAGE 0.6/1KV
Such product can be still keep fine mechanical,physical and electric properties at a temperayure of 200¡æ ,and it possesses the features of solution resisitant,anti-corrosion and hi-temperature resistant etc,suiting for the fixed-laying of distribution network with A.C.O.6/1kv rated voltage or industrial devices under some adverse conditions like high temperature.
Operation characteristics
• Rated voltage Uo/U:0.6/1kv.
• The allowable and continous work temperature of cable conductor:silicon-rubber insulation: 200¡æ ,fluoroplastic insulation: 180¡æ .
• The laying temperature of cable should not less than 0¡æ .
The allowance bending radious:not less than 6 -fold external diameter of the cable for the cable without armor or screen layer. Not lee than 12-fold external diameter of the cable for the cable with armor or screen layer.
¡¡ SILICONE POWER CABLE
Usage:
Applying for connecting with moving eletrical appliances in inclement environment for example energy production,metallurgy,checal industry,port and mine it is suitable for fiexd location as well having the capacity of with stand oil and corrosion.
Operation character
Operation temperature:long-time operation temperature is not more tahan 180¡æ
Rated voltage Uo/U:600/1000V
Min environment temperature:fixed laying -60 ¡æ ;no fixed laying -20 ¡æ
Min curve radious:not less than four times of cable extemal diameter
Model and name:
Mode |
Name |
DHTGGR |
Copper core silicone rubber insulation and sheath soft cable |
DHTGGR X |
Tinning copper core silicone rubber insulation and sheath soft cable |
DHTFGR |
Copper core fluorine plastic insulation silicone rubber sheath soft cable |
DHTFGR X |
Tinning copper core fluorine plastic insulation silicone rubber sheath soft cable |
DHTGV t R |
Copper core silicone rubber insulation elastomer sheath soft cable |
DHTGV t R X |
Tinning copper core silicone rubber insulation elastomer sheath soft cable |
DHTGGRP |
Copper core silicone rubber insulation and sheath copper wire knitting shield soft cable |
DHTGGV t R 22 |
Copper core silicone rubber insulation plastic elastomer sheath steel strip armor cable |
¡¡
