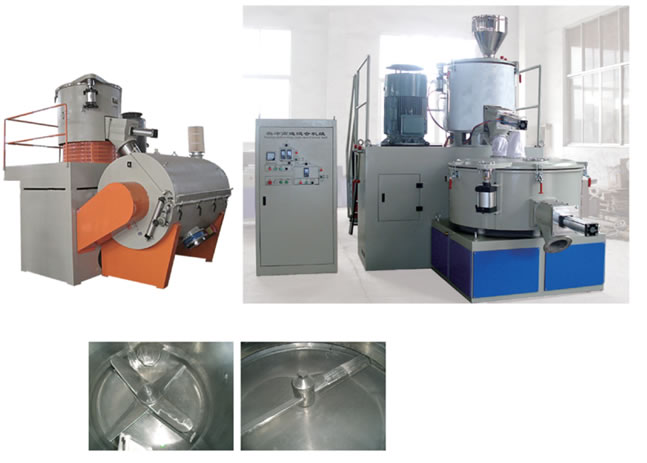

SRL-Z series heating&cooling mixing unit

Function and application:

This mixing unit is the ideal equipment for mixing and drying raw material.

Two layers sealing pot cover,cover opening adopts pneumatic control.All blades are tested by dynamic and static balance.

Technical parameters

Model

SRL-Z200/500

SRL-Z300/600

SRL-Z500/1000

SRL-Z500/1600

SRL-Z800/2000

Capacity(L)

200/500

300/600

500/1000

500/1600

800/2000

Effective capacity(L)

150/320

200/360

375/640

375/1200

600/1500

Rotate speed(rpm)

475/950/130

475/950/130

430/860/50

430/860/60

370/740

Motor&heating power(kw)

30/42/11

40/55/11

47/67/15

55/75/18.5

83/110/30

Weight

3.5

4.2

5.8

7.3

7.3
