Pelton Water turbine gererating units

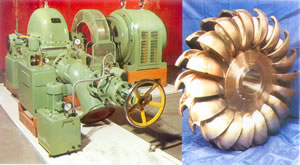

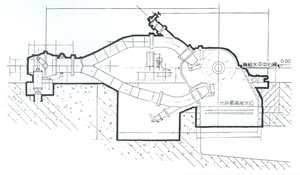

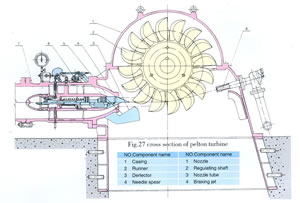

Single nozzle pelton unit	Structure of Single nozzle pleton unit

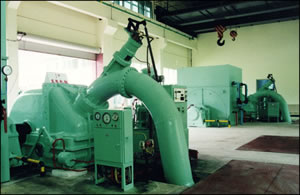

Double nozzles pelton unit	Structure of Double nozzles pleton unit

【 Specifications 】 Type of the runners : CJA237-W-45- 145
　　　　　　　　　　　The diameter of the runner is from 0.45m- 2.5m;
　　　　　　　　　　　Suitable water head: H =100m- 1200m;
　　　　　　　　　　　Suitable flow: Q =0.08m3/s- 4.10m3/s
　　　　　　　　　　　The capacity of the generator unit: 50KW- 20000KW.



【 Advantages 】 It is suitable for high water head and little flow hydropower stations in mountain areas.
The units have many advantages such as simple structure, wide stability and little investment
