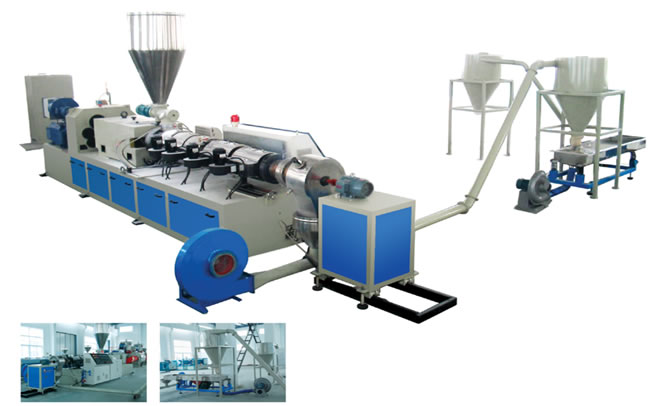

PVC granules production line
Function and application:
This pelletizing machine is composed by CHSJSZ series conical twin-screw extruder and correspongingly pelletizing auxiliary equipment;It is suitable for pelletizing PVC,WPC material.The pellets produced by this line are even,soild,elegance.
 Technical parameters
Model |
CHSJSZ51 |
CHSJSZ55 |
CHSJSZ65 |
CHSJSZ80 |
CHSJSZ92 |
Screw Dia.(mm) |
Φ51/105 |
Φ55/110 |
Φ65/132 |
Φ80/156 |
Φ92/188 |
Main motor(kw) |
18.5 |
22 |
37 |
55 |
90 |
Cutting motor(kw) |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
Granules size(mm) |
3 |
3 |
3 |
3 |
3 |
Output(kg/h) |
80-100 |
100-150 |
150-250 |
250-380 |
380-700 |
|
