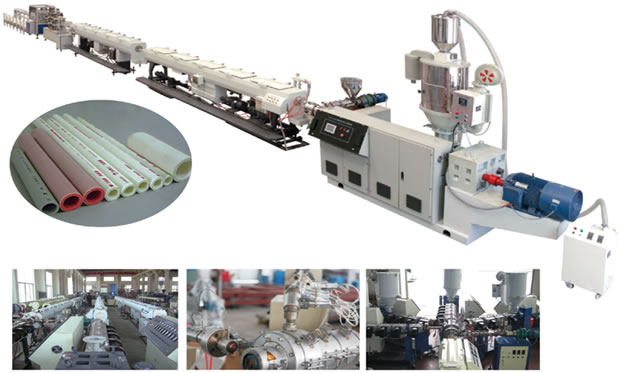

PPR pipe production line
Function and application:
PPR pipe production line is consist of SJ series extruder,mold,vacuum tank,spraying cooling tank,haul-off,no-dust cutting machine,stacker.It is apply to produce PPR,PE-RT cold and hot water supply pipe.Equipped other extruder,different mold,it could produce PPR double-layer pipe,muti-layer pipe,PPR fiberglass reinforce pipe.
This production line has advantage of easy operation,stable running,hign output and very popular home and abroad.
Technical parameters
Model |
CHSJ65/30 |
CHSJ65/30 |
CHSJ75/30 |
Pipe diameter range(mm) |
Φ16-63 |
Φ20-110 |
Φ50-160 |
Screw diameter(mm) |
Φ65 |
Φ65 |
Φ75 |
Screw length proportion(L/D) |
30:1 |
30:1 |
30:1 |
Motor power(kw) |
37 |
37 |
55 |
Drawing speed(r/min) |
0-10 |
0-8 |
0-8 |
Output(kg/h) |
40-80 |
60-120 |
80-160 |
Length(m) |
25 |
25 |
28 |
|
