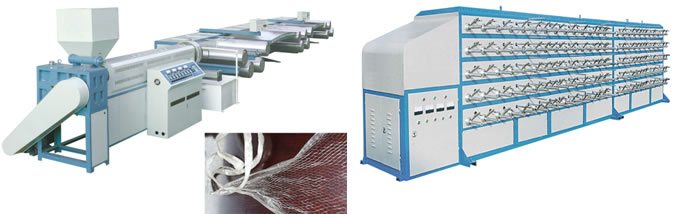

PP net rope production line
Function and application:
This production line can produced by 100% PP reclaimed material, new material is more better. The product is widely used for making rope, weaving, cable filler film, etc.
Main parts of this rope production are plastic extruder,cooling tank,heating and stretching device,tracting machine,net device system,twisting machine and ect.
Process flow:
Raw material！Heating and extrude！Cooling and froming！Automatic into wire！Heated extended！Traction and winding！product. Technical parameters
Model |
CH-PPR-180 |
CH-PPR-200 |
Power of extruder(kw) |
37 |
18.5〜3 |
Capacity of cooling tank(m3) |
1.3 |
1.3 |
Max output(m/min) |
180 |
190 |
Total power(kw) |
130 |
150 |
Normal working power(kw) |
70 |
75 |
Dimension(L*W*H)(m) |
34〜2.6〜1.7 |
34〜2.6〜1.7 |
Total wight(Ton) |
13.5 |
14 |
|
