MIDDLE&HIGH-VOLTAGE XLPE CABLES
COPPER OR ALUMINUM CONDUCTOR PLASTIC INSULATED POWER CABLE FOR VOLTAGE UP TO AND INCLUDING 35KV
Application:
The product is suitable for use in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 35kv.
Operating characteristics
1¡¢ XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U:3.6/6kv~26/35kv
Max.permissible continuous operating temperature of conductor: 90 ¡æ .
Max.short-circuit temperature of conductor shall not exceed 250 ¡æ .(5s Max.Duration)
The ambient temperature under installation shall not below 0 ¡æ .
The bending radius of single-core cable shall not less than 20 times of the the cable diameter.
The bending radius of three-core cable shall not less than 15 times of the the cable diameter.
2 ¡¢XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U:0.6/1kv
Max.permissible continuous operating temperature of conductor: 90¡æ .
Max.short-circuit temperature of conductor shall not exceed 250¡æ .(5s Max.Duration)
The ambient temperature under installation shall not below 0¡æ .
The bending radius of single-core cable shall not less than 20 times of the the cable diameter.
The bending radius of three-core cable shall not less than 15 times of the the cable diameter.
3¡¢ PVC Insulated Electrical Cable for rated power frequency voltage Uo/U:0.6/1kv
Max.permissible continuous operating temperature of conductor: 70¡æ .
Max.short-circuit temperature of conductor shall not exceed 160¡æ .(5s Max.Duration)
The ambient temperature under installation shall not below 0¡æ .
The bending radius of single-core cable shall not less than 20 times of the the cable diameter.
The bending radius of three-core cable shall not less than 15 times of the the cable diameter.
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is usedd,and is expressed in the form of Uo/U(Um)kv.
Where:
Uo-The rated power-frequency voltage between conductor and screenor metallic-sheath,for which the cable designed;
U- The rated power-frequency voltage between conductors,for which the cable designed;
Um-The maximum vaule of the ¡°highest system voltage¡±for which the equipment may be operated.

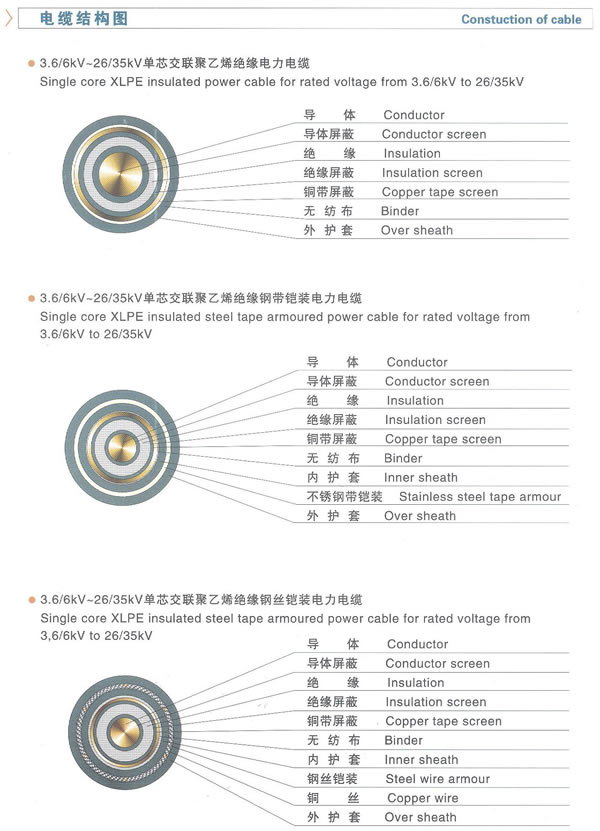

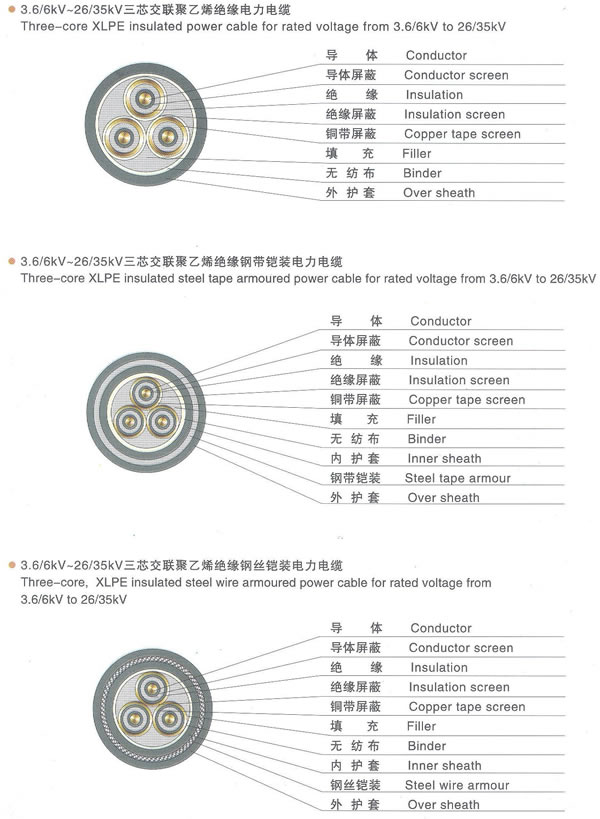

XLPE INSULATED ELECTRICAL CABLE FOR RATED VOLTAGE 3.6/6KV~26/35KV
Type of cable:
Type |
Discription |
Application |
YJV |
Copper conductor XLPE insulated PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground,not required to bear external mechanical forces.
Single core cable in magnetic duct is not permissible. |
YJLV |
Aluminium conductor XLPE insulated PVC sheathed power cable. |
YJV |
Copper conductor XLPE insulated PE sheathed power cable. |
YJLV |
Aluminium conductor XLPE insulated PE sheathed power cable. |
YJV22 |
Copper conductor XLPE insulated steel tape armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground,required to bear certain longitudinal mechanical force. |
YJLV22 |
Aluminium conductor XLPE insulated steel tape armoured PVC sheathed power cable. |
YJV23 |
Copper conductor XLPE insulated steel tape armoured PE sheathed power cable. |
YJLV23 |
Aluminium conductor XLPE insulated steel tape armoured PE sheathed power cable. |
YJV32 |
Copper conductor XLPE insulated fine steel wire armoured PVC sheathed power cable. |
For laying in doors ¡¢ in tunnels and direct in ground and wells,required to bear external mechanical forces and determinate pulling force. |
YJLV32 |
Aluminium conductor XLPE insulated fine steel wire armoured PVC sheathed power cable. |
YJV33 |
Copper conductor XLPE insulated fine steel wire armoured PE sheathed power cable. |
YJLV33 |
Aluminium conductor XLPE insulated fine steel wire armoured PE sheathed power cable. |
Product date table
3.6/6kv 1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
2.5 |
17.9 |
560 |
390 |
21.7 |
700 |
550 |
24.7 |
1340 |
1190 |
35 |
2.5 |
18.9 |
680 |
480 |
22.6 |
820 |
610 |
25.8 |
1490 |
1290 |
50 |
2.5 |
20.3 |
860 |
550 |
24 |
990 |
690 |
27.2 |
1720 |
1420 |
70 |
2.5 |
21.9 |
1080 |
650 |
25.4 |
1220 |
790 |
28.8 |
2010 |
1590 |
95 |
2.5 |
23.7 |
1350 |
760 |
27.2 |
1490 |
920 |
30.6 |
2350 |
1770 |
120 |
2.5 |
25.2 |
1610 |
870 |
28.7 |
1770 |
1040 |
32.1 |
2680 |
1950 |
150 |
2.5 |
27 |
1920 |
990 |
31.7 |
2240 |
1330 |
34.9 |
3070 |
2160 |
185 |
2.5 |
28.6 |
2290 |
1140 |
33.3 |
2600 |
1480 |
36.5 |
3480 |
2360 |
240 |
2.6 |
31.2 |
2860 |
1370 |
35.9 |
3180 |
1730 |
39.1 |
4140 |
2680 |
300 |
2.8 |
34 |
3500 |
1640 |
38.7 |
3810 |
1990 |
41.9 |
4840 |
3020 |
400 |
3.0 |
37.6 |
4610 |
2140 |
42.5 |
4840 |
2420 |
45.6 |
6320 |
3890 |
500 |
3.2 |
41.3 |
5700 |
2610 |
46.3 |
5860 |
2830 |
49.3 |
7470 |
4440 |
630 |
3.2 |
44.9 |
6990 |
3090 |
50 |
7200 |
3380 |
53.1 |
8940 |
5120 |
3.6/6kv 3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
2.5 |
35.8 |
1750 |
1280 |
40.5 |
2760 |
2300 |
42.7 |
3620 |
3160 |
35 |
2.5 |
38.1 |
2130 |
1470 |
43 |
3210 |
2550 |
46.2 |
4140 |
3490 |
50 |
2.5 |
41.1 |
2670 |
1740 |
46.1 |
3830 |
2890 |
49.3 |
4860 |
3940 |
70 |
2.5 |
44.5 |
3390 |
2090 |
49.7 |
4650 |
3340 |
52.9 |
5770 |
4480 |
95 |
2.5 |
48.5 |
4250 |
2470 |
53.8 |
5630 |
3850 |
57 |
6870 |
5120 |
120 |
2.5 |
51.7 |
5090 |
2850 |
57.2 |
6550 |
4310 |
60.4 |
7870 |
5650 |
150 |
2.5 |
55.4 |
6120 |
3310 |
60.9 |
7650 |
4840 |
64.2 |
9090 |
6320 |
185 |
2.5 |
58.8 |
7270 |
3800 |
64.5 |
8890 |
5430 |
67.8 |
10460 |
7050 |
240 |
2.6 |
64.6 |
9090 |
4600 |
70.5 |
10860 |
6370 |
75.1 |
13380 |
8940 |
300 |
2.8 |
70.6 |
11120 |
5510 |
76.7 |
13230 |
7610 |
81.3 |
15680 |
10130 |
400 |
3 |
78.4 |
15190 |
7750 |
86.2 |
17830 |
10440 |
89.5 |
19320 |
11930 |
500 |
3.2 |
86.2 |
17131 |
8045 |
94.3 |
20087 |
11256 |
97.6 |
23060 |
13820 |
630 |
3.2 |
94 |
21037 |
9749 |
102.4 |
23952 |
13166 |
105.7 |
27690 |
16050 |
¡¡
6/6 6/10kv,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
3.4 |
19.8 |
609 |
458 |
23.4 |
919 |
767 |
26.6 |
1643 |
1384 |
35 |
3.4 |
20.8 |
729 |
514 |
24.4 |
1055 |
840 |
27.6 |
1821 |
1499 |
50 |
3.4 |
22.3 |
876 |
585 |
25.7 |
1219 |
929 |
29.1 |
2027 |
1628 |
70 |
3.4 |
23.8 |
1092 |
681 |
27.2 |
1458 |
1047 |
30.6 |
2329 |
1810 |
95 |
3.4 |
25.7 |
1388 |
805 |
29.1 |
1780 |
1197 |
32.5 |
2689 |
1999 |
120 |
3.4 |
27.1 |
1651 |
913 |
31.9 |
2312 |
1575 |
33.9 |
3037 |
2192 |
150 |
3.4 |
28.7 |
1970 |
1043 |
33.5 |
2670 |
1743 |
35.7 |
3419 |
2384 |
185 |
3.4 |
30.4 |
2271 |
1165 |
35.2 |
3007 |
1901 |
38.4 |
4147 |
2869 |
240 |
3.4 |
32.9 |
2830 |
1382 |
37.7 |
3621 |
2173 |
40.9 |
4842 |
3222 |
300 |
3.4 |
35.3 |
3502 |
1642 |
39.9 |
4330 |
2470 |
43.3 |
5637 |
3606 |
400 |
3.4 |
38.5 |
4406 |
1991 |
43.3 |
5281 |
2866 |
46.7 |
6701 |
4115 |
500 |
3.4 |
42.0 |
5515 |
2418 |
47.0 |
6442 |
3345 |
50.2 |
7992 |
4724 |
630 |
3.4 |
45.6 |
6754 |
2883 |
50.8 |
7766 |
3895 |
54.0 |
9457 |
5414 |
¡¡
6/6 6/10kv,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
3.4 |
39.8 |
1927 |
1451 |
44.8 |
2785 |
2322 |
48.0 |
4229 |
3766 |
35 |
3.4 |
42.2 |
2316 |
1639 |
47.4 |
3224 |
2569 |
50.6 |
4771 |
4117 |
50 |
3.4 |
45.2 |
2805 |
1874 |
50.4 |
3795 |
2909 |
53.6 |
5456 |
4571 |
70 |
3.4 |
48.6 |
3497 |
2193 |
54.0 |
4586 |
3335 |
57.2 |
6352 |
5101 |
95 |
3.4 |
52.7 |
4483 |
2653 |
57.9 |
5631 |
3857 |
61.1 |
7539 |
5765 |
120 |
3.4 |
55.9 |
5340 |
3040 |
61.3 |
6561 |
4317 |
64.5 |
8578 |
6334 |
150 |
3.4 |
59.6 |
6398 |
3503 |
65.4 |
7732 |
4911 |
68.6 |
9901 |
7080 |
185 |
3.4 |
63.0 |
7241 |
3946 |
68.8 |
8828 |
5460 |
72.0 |
11095 |
7727 |
240 |
3.4 |
68.3 |
9234 |
4729 |
74.3 |
10769 |
6360 |
77.5 |
13254 |
8844 |
300 |
3.4 |
73.3 |
11337 |
5586 |
80.9 |
13069 |
7406 |
84.2 |
16678 |
11015 |
400 |
3.4 |
80.3 |
14174 |
6822 |
88.1 |
16832 |
9480 |
91.4 |
20051 |
12698 |
500 |
3.4 |
87.9 |
17730 |
8299 |
95.2 |
20687 |
11256 |
99.2 |
24211 |
14780 |
630 |
3.4 |
95.8 |
21736 |
9949 |
104.0 |
24952 |
13165 |
107.3 |
28839 |
17052 |
¡¡ 8.7/10 8.7/15kv,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
4.5 |
22.0 |
696 |
544 |
25.6 |
919 |
767 |
29.0 |
1846 |
1587 |
35 |
4.5 |
23.0 |
819 |
604 |
26.6 |
1055 |
840 |
30.0 |
2026 |
1704 |
50 |
4.5 |
24.5 |
970 |
679 |
27.9 |
1219 |
929 |
31.5 |
2237 |
1839 |
70 |
4.5 |
26.2 |
1191 |
780 |
30.8 |
1458 |
1047 |
33.0 |
2520 |
2002 |
95 |
4.5 |
27.9 |
1493 |
910 |
32.7 |
1780 |
1197 |
34.9 |
2911 |
2220 |
120 |
4.5 |
29.5 |
1760 |
1023 |
34.1 |
2312 |
1575 |
37.5 |
3690 |
2770 |
150 |
4.5 |
31.1 |
2085 |
1158 |
35.9 |
2670 |
1743 |
39.1 |
4005 |
2907 |
185 |
4.5 |
32.8 |
2391 |
1285 |
37.6 |
3007 |
1901 |
40.8 |
4402 |
3124 |
240 |
4.5 |
35.3 |
2873 |
1525 |
39.9 |
3621 |
2173 |
43.1 |
5104 |
3485 |
300 |
4.5 |
37.7 |
3657 |
1798 |
42.5 |
4330 |
2470 |
45.7 |
5908 |
3877 |
400 |
4.5 |
40.9 |
4571 |
2156 |
45.7 |
5281 |
2866 |
48.9 |
6982 |
4396 |
500 |
4.5 |
44.4 |
5692 |
2595 |
49.4 |
6442 |
3345 |
52.6 |
8287 |
5018 |
630 |
4.5 |
48.0 |
6945 |
3074 |
53.4 |
7766 |
3895 |
56.6 |
9789 |
5746 |
¡¡
8.7/10,8.7/15kv,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
25 |
4.5 |
45.0 |
2917 |
1747 |
50.2 |
3201 |
2739 |
52.4 |
4841 |
4378 |
35 |
4.5 |
47.3 |
2616 |
1947 |
52.3 |
3646 |
2991 |
55.7 |
5394 |
4740 |
50 |
4.5 |
50.3 |
3144 |
2223 |
55.7 |
4269 |
3383 |
58.9 |
6107 |
5222 |
70 |
4.5 |
53.8 |
3879 |
2586 |
59.4 |
5082 |
3831 |
62.6 |
7066 |
5815 |
95 |
4.5 |
57.6 |
4872 |
3051 |
63.2 |
6159 |
4285 |
66.4 |
8276 |
6501 |
120 |
4.5 |
60.9 |
5753 |
3458 |
66.7 |
7115 |
4870 |
69.9 |
9312 |
7068 |
150 |
4.5 |
64.5 |
6837 |
3945 |
70.2 |
8296 |
5475 |
73.7 |
10636 |
7814 |
185 |
4.5 |
68.1 |
7900 |
4429 |
74.1 |
9429 |
6061 |
77.3 |
11879 |
8510 |
240 |
4.5 |
73.3 |
9719 |
5230 |
79.5 |
11450 |
7041 |
84.2 |
15060 |
10650 |
300 |
4.5 |
78.4 |
11862 |
6154 |
86.2 |
14508 |
8845 |
89.5 |
17597 |
11934 |
400 |
4.5 |
85.3 |
14795 |
7402 |
93.5 |
17695 |
10343 |
96.8 |
21109 |
13756 |
500 |
4.5 |
93.0 |
18381 |
8950 |
101.2 |
21503 |
12072 |
104.5 |
25297 |
15836 |
630 |
4.5 |
100.7 |
22396 |
10609 |
109.3 |
25869 |
14082 |
112.6 |
29892 |
18105 |
¡¡
12/20kv,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
35 |
5.5 |
25.4 |
930 |
720 |
30.1 |
1410 |
1200 |
32.2 |
2030 |
1820 |
50 |
5.5 |
26.8 |
1160 |
850 |
31.5 |
1630 |
1320 |
33.6 |
2280 |
1980 |
70 |
5.5 |
28.4 |
1410 |
980 |
33.1 |
1890 |
1460 |
35.2 |
2580 |
2150 |
95 |
5.5 |
30.2 |
1690 |
1110 |
34.9 |
2210 |
1640 |
37.0 |
2950 |
2370 |
120 |
5.5 |
31.7 |
1980 |
1240 |
36.4 |
2510 |
1780 |
38.5 |
3280 |
2550 |
150 |
5.5 |
33.4 |
2310 |
1380 |
38.1 |
2880 |
1970 |
40.2 |
3680 |
2770 |
185 |
5.5 |
35.0 |
2700 |
1550 |
39.7 |
3270 |
2150 |
41.8 |
4110 |
2990 |
240 |
5.5 |
37.4 |
3290 |
1800 |
42.1 |
3900 |
2440 |
45.4 |
5150 |
3690 |
300 |
5.5 |
39.8 |
3910 |
2050 |
44.7 |
4590 |
2770 |
47.9 |
5930 |
4110 |
400 |
5.5 |
43.0 |
5030 |
2550 |
48.1 |
5670 |
3250 |
51.3 |
7130 |
4690 |
500 |
5.5 |
46.2 |
6120 |
3030 |
51.4 |
6760 |
3730 |
54.6 |
8320 |
5280 |
630 |
5.5 |
49.8 |
7440 |
3540 |
55.2 |
8150 |
4320 |
58.4 |
9830 |
6010 |
12/20kv,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
35 |
5.5 |
52.0 |
3230 |
2570 |
57.4 |
4270 |
3620 |
60.7 |
5970 |
5330 |
50 |
5.5 |
55.0 |
3840 |
2900 |
60.6 |
4930 |
4010 |
63.8 |
6730 |
5810 |
70 |
5.5 |
58.1 |
4640 |
3330 |
64.1 |
5830 |
4540 |
67.3 |
7720 |
6430 |
95 |
5.5 |
62.3 |
5570 |
4240 |
68.2 |
6850 |
5090 |
72.8 |
9640 |
7890 |
120 |
5.5 |
65.6 |
6480 |
4750 |
71.5 |
7850 |
5640 |
76.1 |
10800 |
8580 |
150 |
5.5 |
69.2 |
7560 |
5320 |
75.3 |
9040 |
6260 |
79.9 |
12180 |
9410 |
185 |
5.5 |
72.7 |
8780 |
6180 |
78.9 |
10300 |
6890 |
83.5 |
13600 |
10180 |
240 |
5.5 |
78.0 |
10680 |
7100 |
85.7 |
13120 |
8690 |
89.0 |
15850 |
11420 |
300 |
5.5 |
83.0 |
12720 |
8790 |
91.0 |
15350 |
9810 |
94.3 |
18260 |
12720 |
400 |
5.5 |
90.0 |
16280 |
9580 |
98.2 |
18940 |
11560 |
101.5 |
22100 |
14710 |
500 |
5.5 |
96.8 |
18820 |
11310 |
105.3 |
22530 |
13300 |
108.6 |
25950 |
16710 |
630 |
5.5 |
104.6 |
22950 |
3540 |
113.4 |
27000 |
15370 |
116.7 |
30690 |
19050 |
18/20,18/30kv ,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
35 |
8.0 |
31.9 |
1240 |
1020 |
¡ª |
¡ª |
¡ª |
¡ª |
¡ª |
¡ª |
50 |
8.0 |
33.3 |
1560 |
1250 |
35.4 |
2060 |
1760 |
38.8 |
2910 |
2610 |
70 |
8.0 |
34.9 |
1840 |
1400 |
38.6 |
2340 |
1910 |
40.7 |
3240 |
2820 |
95 |
8.0 |
36.7 |
2140 |
1550 |
40.1 |
2680 |
2100 |
42.3 |
3610 |
3030 |
120 |
8.0 |
38.2 |
2450 |
1700 |
41.8 |
3020 |
2290 |
43.9 |
4370 |
3640 |
150 |
8.0 |
39.9 |
2790 |
1860 |
43.4 |
3400 |
2490 |
46.7 |
4810 |
3900 |
185 |
8.0 |
41.5 |
3200 |
2050 |
45.3 |
3810 |
2690 |
48.5 |
5270 |
4150 |
240 |
8.0 |
44.0 |
3800 |
2310 |
47.6 |
4490 |
3030 |
50.7 |
6040 |
4580 |
300 |
8.0 |
46.3 |
4460 |
2600 |
50.2 |
5180 |
3300 |
53.5 |
6810 |
4990 |
400 |
8.0 |
49.6 |
5530 |
3060 |
53.4 |
6310 |
3880 |
56.7 |
8050 |
5620 |
500 |
8.0 |
52.8 |
6160 |
3560 |
57.0 |
7430 |
4390 |
60.3 |
9280 |
6250 |
630 |
8.0 |
56.4 |
8020 |
4120 |
61.2 |
8860 |
5030 |
64.3 |
10830 |
7010 |
18/20,18/30kv ,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
50 |
8.0 |
68.4 |
5290 |
4350 |
75.1 |
7200 |
6250 |
79.7 |
9790 |
8870 |
70 |
8.0 |
72.5 |
6240 |
4930 |
78.7 |
8230 |
6910 |
83.3 |
10900 |
9610 |
95 |
8.0 |
75.9 |
7360 |
5580 |
84.0 |
9410 |
7620 |
87.4 |
12220 |
10470 |
120 |
8.0 |
79.4 |
8350 |
6100 |
87.5 |
11120 |
8870 |
90.8 |
13440 |
11220 |
150 |
8.0 |
82.6 |
9520 |
6410 |
91.3 |
12400 |
9580 |
94.6 |
14880 |
12100 |
185 |
8.0 |
84.4 |
10830 |
7370 |
94.9 |
13910 |
10450 |
98.2 |
16420 |
12990 |
240 |
8.0 |
91.4 |
12810 |
8300 |
100.3 |
16080 |
11590 |
103.7 |
18770 |
14340 |
300 |
8.0 |
96.7 |
14920 |
9300 |
105.6 |
18500 |
12850 |
108.9 |
21250 |
15710 |
400 |
8.0 |
103.8 |
18110 |
10620 |
112.8 |
21920 |
14410 |
116.1 |
25260 |
17870 |
500 |
8.0 |
111.1 |
20990 |
11780 |
119.3 |
25970 |
16330 |
123.2 |
29260 |
20030 |
630 |
8.0 |
119.2 |
25290 |
13650 |
128.9 |
31250 |
18970 |
131.3 |
34170 |
22530 |
¡¡
21/35kv ,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
50 |
9.3 |
36.1 |
1590 |
1290 |
40.5 |
2370 |
2070 |
43.0 |
3200 |
2890 |
70 |
9.3 |
37.7 |
1840 |
1420 |
42.2 |
2670 |
2250 |
45.7 |
3920 |
3490 |
95 |
9.3 |
39.5 |
2160 |
1580 |
44.1 |
3030 |
2460 |
47.6 |
4340 |
3760 |
120 |
9.3 |
41.0 |
2450 |
1720 |
45.6 |
3350 |
2620 |
49.1 |
4710 |
3980 |
150 |
9.3 |
42.7 |
2810 |
1890 |
47.4 |
3750 |
2840 |
50.9 |
5160 |
4250 |
185 |
9.3 |
44.3 |
3190 |
2070 |
49.0 |
4190 |
2060 |
52.6 |
5660 |
4530 |
240 |
9.3 |
46.7 |
3810 |
2350 |
51.6 |
4860 |
3400 |
55.1 |
6400 |
4950 |
300 |
9.3 |
49.1 |
4460 |
2640 |
54.1 |
5590 |
3770 |
57.6 |
7220 |
5390 |
400 |
9.3 |
52.3 |
5510 |
3080 |
57.4 |
6710 |
4280 |
61.0 |
8440 |
6020 |
500 |
9.3 |
55.5 |
6570 |
3540 |
60.7 |
7870 |
4840 |
64.2 |
9720 |
6690 |
630 |
9.3 |
59.1 |
7910 |
4080 |
64.4 |
9290 |
5470 |
68.0 |
11260 |
7440 |
¡¡
21/35kv ,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
50 |
9.3 |
75.1 |
5560 |
4640 |
82.7 |
8260 |
7340 |
86.0 |
10890 |
9960 |
70 |
9.3 |
78.6 |
6450 |
5160 |
86.3 |
9280 |
7990 |
89.6 |
12030 |
10740 |
95 |
9.3 |
82.5 |
7490 |
5730 |
90.4 |
10500 |
8740 |
93.7 |
13430 |
11670 |
120 |
9.3 |
85.7 |
8470 |
6260 |
93.7 |
11630 |
9420 |
97.0 |
14630 |
12420 |
150 |
9.3 |
89.4 |
9640 |
6860 |
97.5 |
12970 |
10200 |
100.8 |
16100 |
13330 |
185 |
9.3 |
92.8 |
10920 |
7500 |
101.1 |
14420 |
11010 |
104.4 |
17680 |
14260 |
240 |
9.3 |
98.1 |
12950 |
8520 |
106.6 |
16690 |
12260 |
109.9 |
20140 |
15710 |
300 |
9.3 |
103.1 |
15060 |
9520 |
111.8 |
18990 |
13450 |
115.1 |
22610 |
17070 |
400 |
9.3 |
110.1 |
18520 |
11120 |
119.0 |
22820 |
15430 |
122.3 |
26680 |
19290 |
500 |
9.3 |
116.9 |
21990 |
12760 |
126.1 |
26630 |
17390 |
129.4 |
30750 |
21520 |
630 |
9.3 |
124.7 |
26350 |
14710 |
134.2 |
31340 |
19700 |
137.5 |
35730 |
24090 |
¡¡
26/35kv ,1-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
50 |
10.5 |
38.7 |
1727 |
1427 |
43.7 |
2600 |
2320 |
46.9 |
4030 |
3490 |
70 |
10.5 |
40.2 |
1980 |
1570 |
45.2 |
2890 |
2480 |
48.4 |
4380 |
3710 |
95 |
10.5 |
42.1 |
2335 |
1750 |
47.1 |
3270 |
2690 |
50.3 |
4830 |
3990 |
120 |
10.5 |
43.7 |
2650 |
1910 |
48.7 |
3600 |
2860 |
51.9 |
5250 |
4260 |
150 |
10.5 |
45.3 |
3016 |
2090 |
50.5 |
4020 |
3090 |
53.7 |
5730 |
4540 |
185 |
10.5 |
47.0 |
3377 |
2270 |
52.0 |
4410 |
3305 |
55.2 |
6160 |
4790 |
240 |
10.5 |
49.3 |
3996 |
2550 |
54.7 |
5110 |
3660 |
57.9 |
6940 |
5230 |
300 |
10.5 |
51.7 |
4733 |
2870 |
57.1 |
5900 |
4040 |
60.3 |
7810 |
5690 |
400 |
10.5 |
54.9 |
5723 |
3308 |
60.5 |
6340 |
4520 |
63.7 |
8990 |
6310 |
500 |
10.5 |
59.8 |
7068 |
3970 |
65.6 |
8380 |
5290 |
68.8 |
10500 |
7140 |
630 |
10.5 |
63.6 |
8418 |
4550 |
69.2 |
9790 |
5910 |
72.6 |
12080 |
7950 |
26/35kv ,3-core XLPE Insulated PVC/PE Sheathed Power Cable.
Nominal Cross-sectional area mm 2 |
Insulation thickness mm |
YJV YJLV YJY YJLY |
YJV22 YJLV22 YJV23 YJLV23 |
YJV32 YJLV32 YJV33 YJLV33 |
Approx. overall diameter mm |
Cable weight max kg/km |
Approx. overall diameter
mm |
Cable weight max kg/km |
Approx. overall diameter mm |
Cable weight max kg/km |
YJV
YJY |
YJLV
YJLY |
YJV22
YJY23 |
YJlV22
YJlY23 |
YJV32
YJY33 |
YJlV32
YJlY33 |
50 |
10.5 |
80.8 |
6030 |
5150 |
88.6 |
8700 |
7820 |
91.9 |
12620 |
11740 |
70 |
10.5 |
84.2 |
6900 |
5650 |
92.0 |
9690 |
8430 |
95.5 |
13820 |
12560 |
95 |
10.5 |
88.1 |
8060 |
6282 |
86.3 |
11050 |
9270 |
99.6 |
15360 |
13590 |
120 |
10.5 |
91.3 |
9070 |
6830 |
99.7 |
12210 |
9970 |
103.0 |
16700 |
14460 |
150 |
10.5 |
94.9 |
10290 |
7470 |
103.3 |
13560 |
10730 |
106.6 |
18280 |
15460 |
185 |
10.5 |
98.4 |
11490 |
8120 |
107.0 |
14880 |
11500 |
110.0 |
19595 |
16335 |
240 |
10.5 |
103.5 |
13550 |
9140 |
112.5 |
17210 |
12800 |
115.2 |
22105 |
17820 |
300 |
10.5 |
108.7 |
15950 |
10290 |
117.7 |
19760 |
14100 |
120.8 |
25360 |
20280 |
400 |
10.5 |
115.5 |
19180 |
11830 |
125.1 |
23390 |
16080 |
127.8 |
31580 |
25050 |
¡¡
Back to Contents
|
