Power Transmission Lines and Substations

1. Tirana 220kv/110KV/35kv substation restructure Project

1.1 The introduction of construction
The project is built to reinforce the 220 KV Tirana substations, Albania . The substation has three sets of autotransformers and will reinforce another one through this project.
1.2 The description and value of main autotransformer
Type of autotransformer:
　 Capacity: 120/120/60 MVA
　 Voltage: 220 + 8x1.25% /115/37.5 + 2x2.5% KV
　 Method of connection: Y0-o/ Δ
The continual working current:
　 220 KV side: Ig 1 =0.331 KA
　 110 KV side: Ig 2 =0.662 KA
　 35 KV side: Ig 3 =0.971 KA

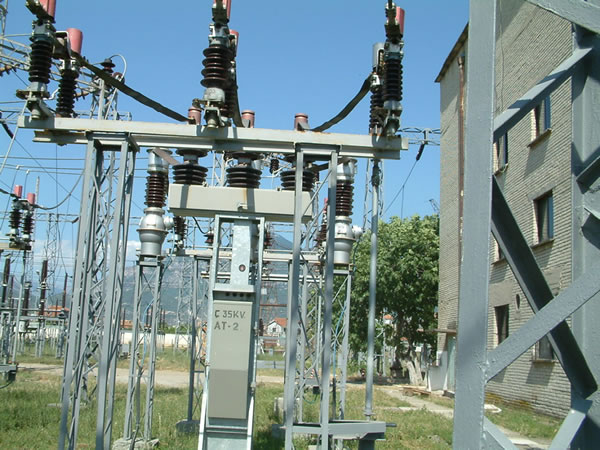

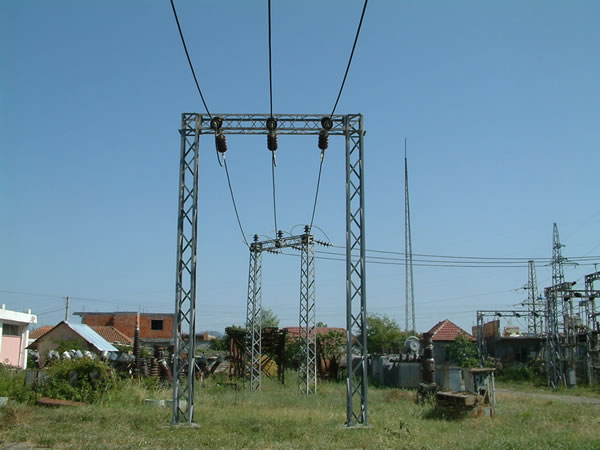

35 KV bay

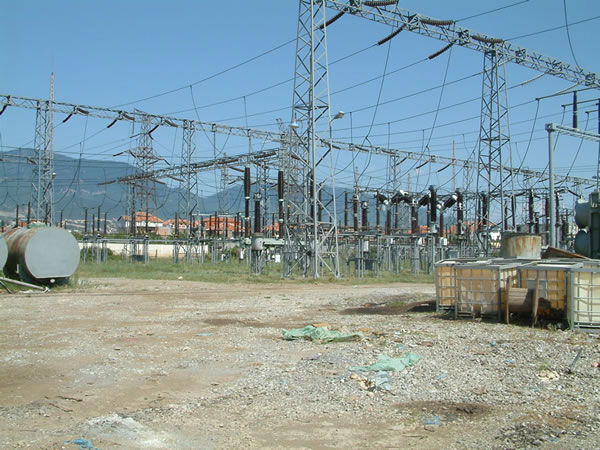

At and 220KV site

35 KV busbars old

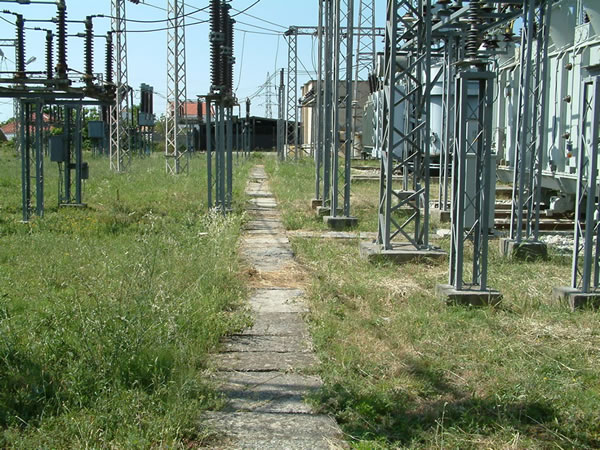

35 KV side old

35 KV construction

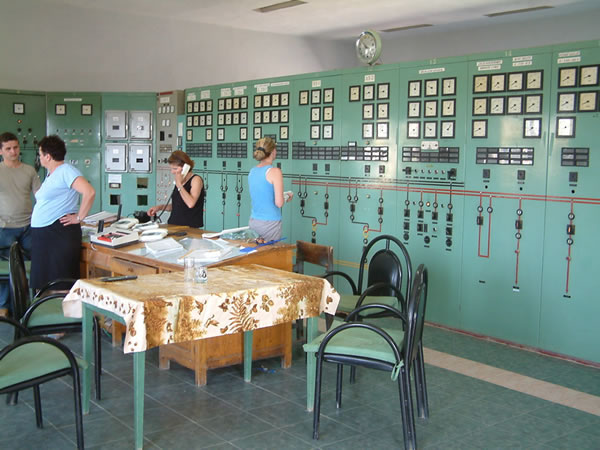

Control room

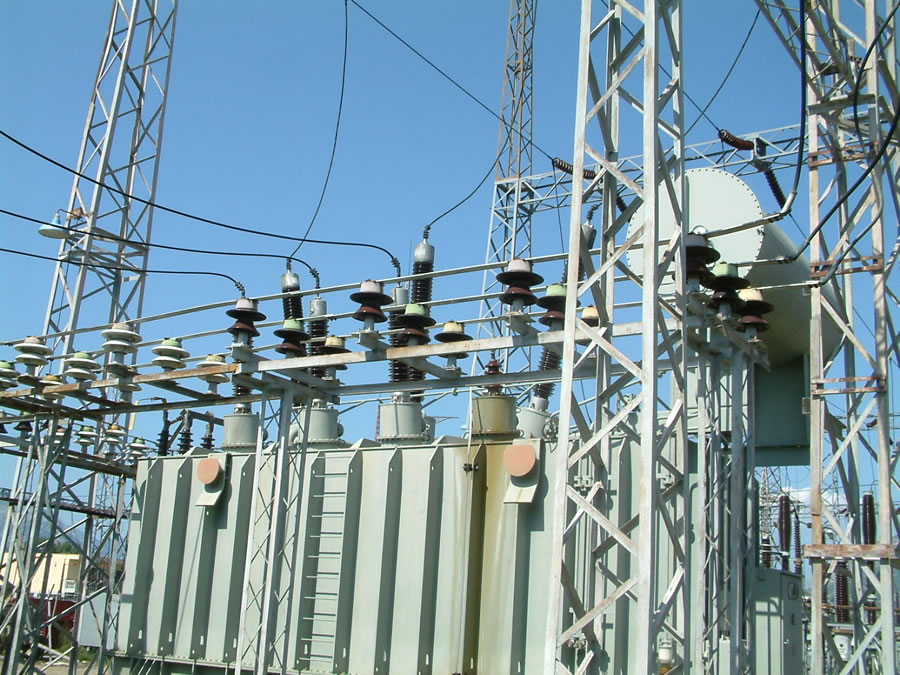

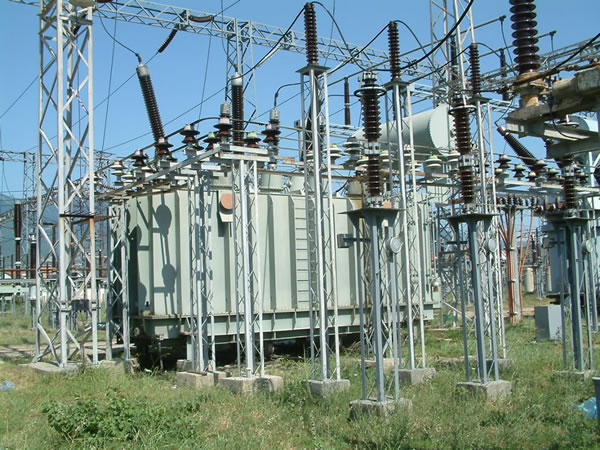

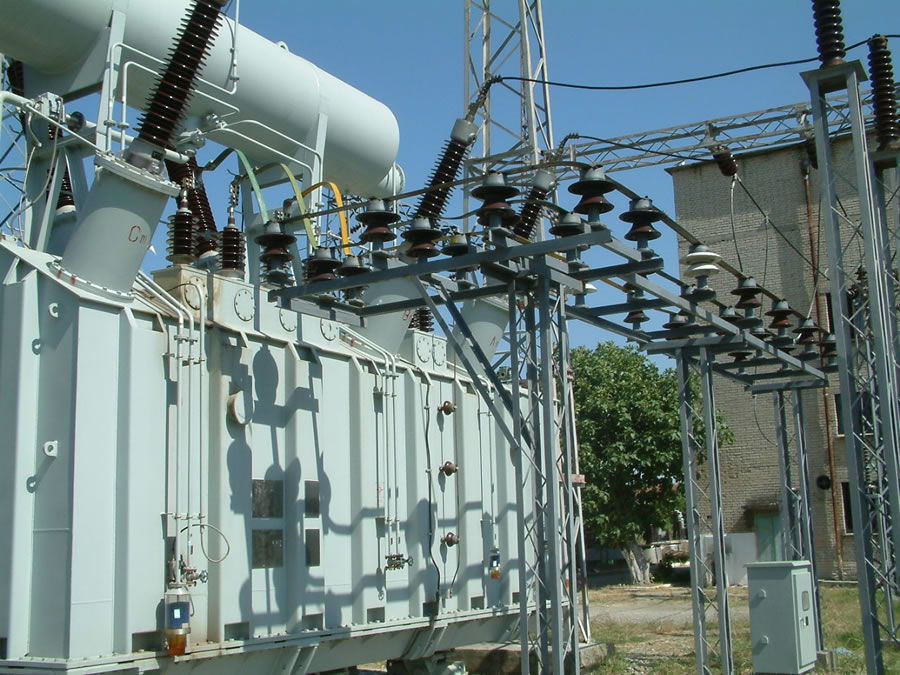

Koncar AT

cable canal

2. Other Project Display

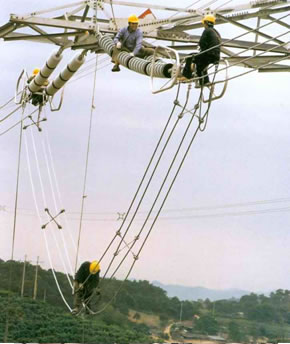

500KV 变电站电器设备安装 Electrical equipment installation for a 500KV substation	500KV 线路工程附件装 Accessories installation for A 500KV transmission project

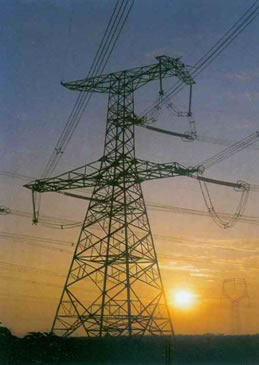

110KV 变电站 110KV Substation	220KV 输变电线路铁搭 An iron tower of 500KV Power
